ZEISS MMZ T
MMT à pont avec grande plage de mesure
Avec une plage de mesure allant jusqu'à 14,8 m³, ZEISS MMZ T offre la plus grande plage de mesure parmi les machines de mesure à pont de table. Par exemple, il permet de mesurer avec une grande précision de grands engrenages directement dans l'atelier.
![ZEISS MMZ T]({"xsmall":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.100.100.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","small":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.360.360.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","medium":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.768.768.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","large":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","xlarge":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1280.1280.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","xxlarge":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1440.1440.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg","max":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-coordinate-measuring-machine.jpg/_jcr_content/renditions/original.image_file.1920.1920.0,483,1920,2403.file/zeiss-mmz-t-coordinate-measuring-machine.jpg"} "ZEISS MMZ T")
Engrenage droit à dents obliques sur une machine à mesurer tridimensionnelle ZEISS MMZ T
![ZEISS MMZ T]({"xsmall":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.100.100.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","small":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.360.360.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","medium":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.768.768.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","large":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1024.1024.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","xlarge":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1280.1280.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","xxlarge":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1440.1440.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg","max":"https://www.zeiss.fr/content/dam/iqs/r/systems/cmm/large-cmms/mmz-t/zeiss-mmz-t-tailstock.jpg/_jcr_content/renditions/original.image_file.1920.1920.0,482,1920,2402.file/zeiss-mmz-t-tailstock.jpg"} "ZEISS MMZ T")

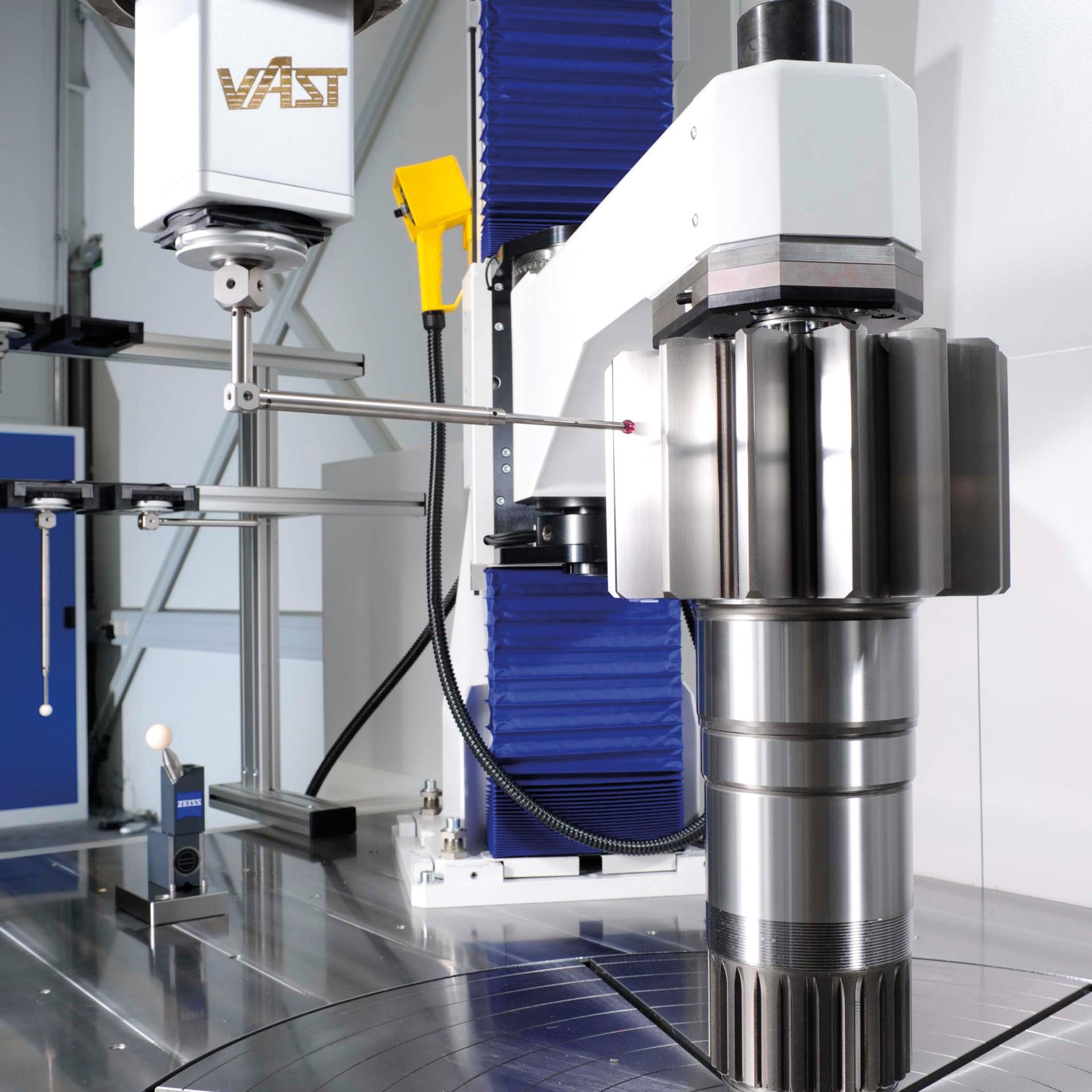

Un ZEISS MMZ T avec contre-pointe motorisée
Données techniques pour ZEISS MMZ T
|
|
|
|
|---|---|---|
|
Incertitude de mesure de longueur |
MPE_E150 |
de 2,4 + L/400 μm |
|
Erreur de palpage d'un seul stylet |
MPE_PFTU |
de 2,0 μ |
|
Erreur de balayage et de sondage |
MPE_THP/tau |
de 2,8 μ / 62 s |
|
Erreur de mesure de la forme |
MPE RONt |
de 2,0 μm |
